Biodegradable T Shirt Bag Making Machine
Provided by Shengxiang
Equipped with Step Motor (Optional servo motor)
Microcomputer control
Manual loading system
Automatic counting system
Work table.
Description
Technical Parameters
Product Description
SX-ST600-800 Double Layer Biodegradable t shirt bag making machine
Application/Features:

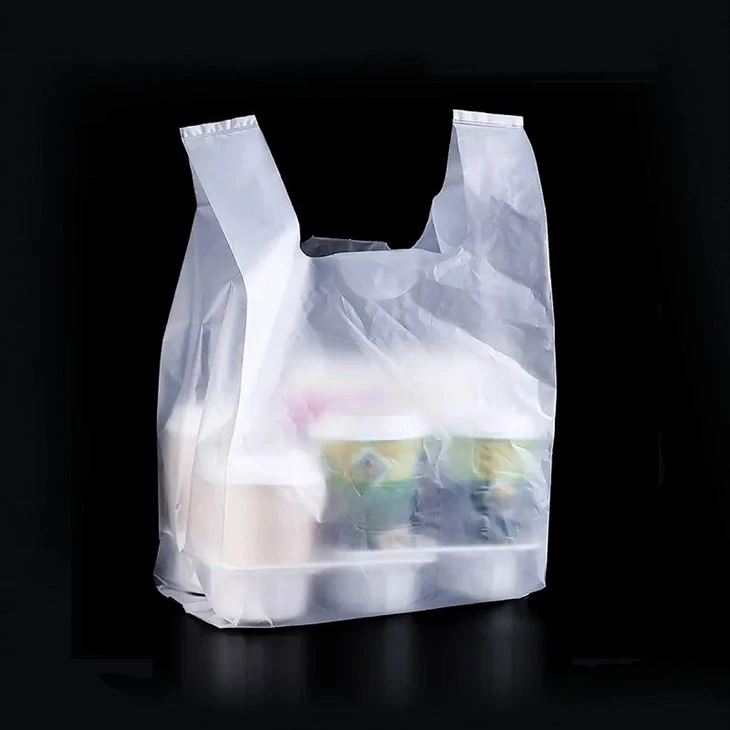

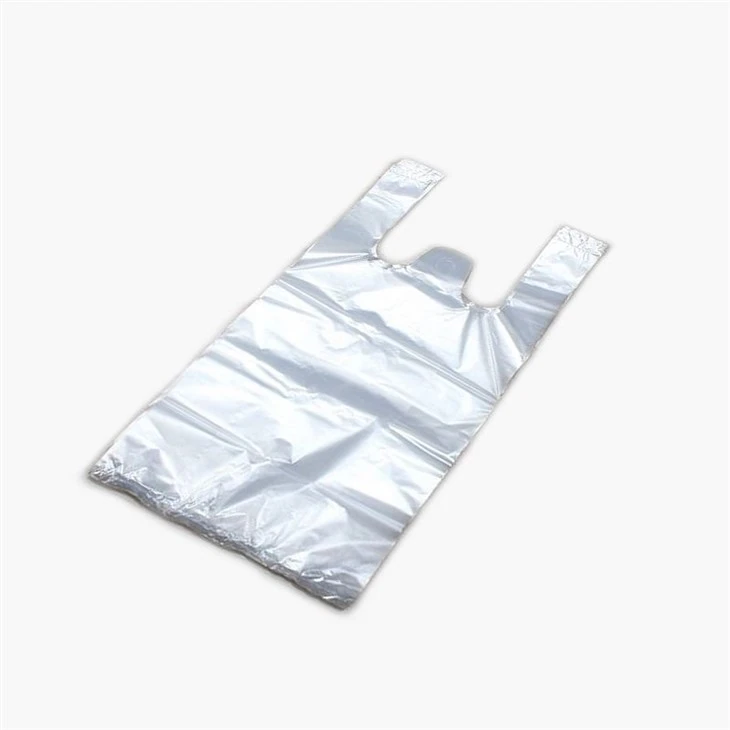

This machine is suitable for making high-low pressure vest bags, supermarket flat bags, Flat bag for clothes and shoes, disposable medical packing bags and bags for sanitary napkins. (When producing spot cutting-off garbage bags, it can be equi-pped with rolling machine and spot cutting-off knife dual-purpose device.
1. The whole machine adopts microcomputer control and material-pulling by stepping motor(Servomotor control system can also be
selected and equipped).
2. Arbitrary fixed-length,accurate and stable step photoelectric tracking stopping automatically when the label is lost, photoelectric
control feeding.
3. Automatic counting and set able counting alarm.
4. Automatic constant temperature makes the sealing of bag opening firm and smooth.
5. Non-printing material can make bags in double lines by 4 rolls feeding,making 4bags im one time.
Machine Basic Parameters
|
Model |
SX-ST600 |
SX-ST700 |
SX-ST800 |
SX-ST900 |
|
Max Bag Making Width |
500 mm |
600 mm |
700 mm |
800 mm |
|
Max Bag Making Length |
1200 mm |
1200 mm |
1200 mm |
1200 mm |
|
Bag Making Speed |
30-180 pcs/min |
30-180 pcs/min |
30-180 pcs/min |
30-180 pcs/min |
|
Total Power |
4 kw |
4.2 kw |
4.5 kw |
5 kw |
|
Weight |
800 kg |
850 kg |
900 kg |
950 kg |
|
Overall Size (L x W x H) |
3300*940*1600 mm |
3300*1040*1600 mm |
3300*1140*1600 mm |
3300*1240*1600 mm |
FAQ
How to place an order?
Product Consultation-> Business negotiation-> Provide plans-> follow-up matters-> arrange deposit-> production-> before delivery (if you need to check the goods, it can be notified us)-> Inspection-> payment settlement- > Packing and Delivery-> Preparations before the factory-> On-site Installation-> Service Feedback-> More cooperation and referral. Detailed content can be seen -trade processes.
Are you a factory?
We are a factory, located in Ruian, Zhejiang, China.
How much space does this machine take?
Different devices have different venue requirements. For details, please consult our sales service consultant.
How many personnel do I need to operate this machine?
SX-ST600-800 Double Layer Biodegradable t shirt bag making machine need one labor for machine operator.
What should I prepare before the equipment arrives at the factory?
We have a list and a spare parts procurement list to meet different needs of transaction customers.
