Film Slitters

SX-FQJ-1100F Film Slitters is mainly used for cutting Kraft paper ,nonwovens, paper, laminated paper, double gummed paper, OPP, PET, PE, BOPP PET PVC composite paper, drum paper roll and other rolling materials width 600-1600mm multi-width requirements can be customized.

Machine cuttable material thickness 30-500GSM (Paper), Film 0.01-2 mm.

The film slitters uses manual feeding, which is suitable for raw materials with relatively light materials.

If the raw materials are relatively heavy, we recommend matching forklifts or auxiliary loading.

The machine with the deviation correction controller can better prevent the deviation correction and displacement of the material.

The machine mainly adopts magnetic powder winding speed of up to 200 meters per minute (motor winding is optional).

This model is economical and suitable for small and medium-sized factories..

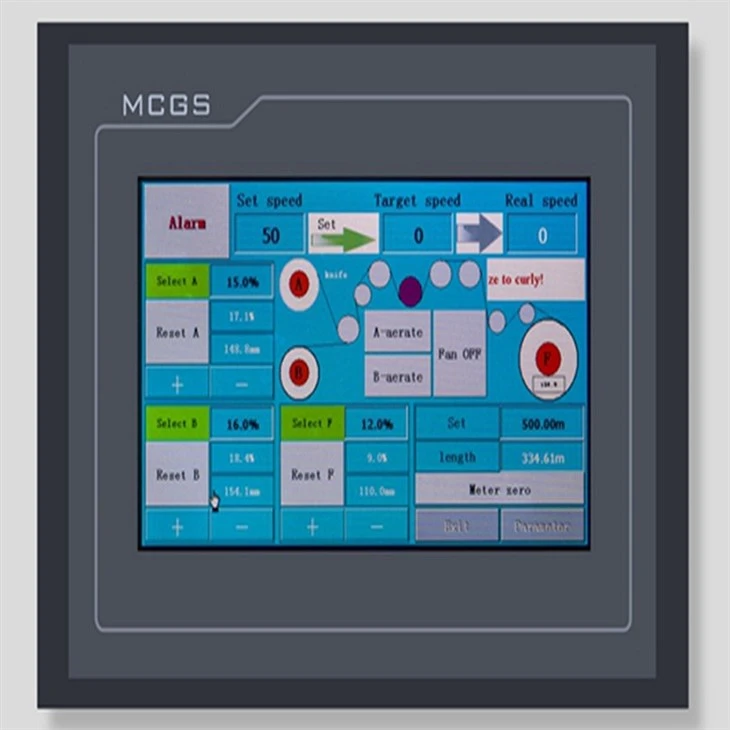

When cutting and rewinding, the edges can be cut and repaired. PLC human-computer interaction can control the material cutting width speed and the length adjustment of different meters to make customers more worry-saving and labor-saving.

1. Unwinding part: manual feeding requires an operator to manipulate and load the master coil.

2. Cutting part: circular knife cutting reduces the resistance caused by the pulling of the cutting object and makes the edge smooth and smooth.

3. Optional accessories:

Different types of inflatable shafts: such as three inches (standard), six inches, two inches.

Blades: round knife, straight knife, air knife (optional)

The company mainly produces paper cutting machines, slitting machines and rewinder machines.

We have a first-class technical team and a large factory workshop.

We provide a variety of prototypes for customers' reference,And welcome customers at home and abroad to visit, exchange and learn from each other
