Plastic Carry Bag Making Machine
Provided by Shengxiang
Equipped with 0.75KW Italy MainMotor
Equipped with 3KW Japan Servo Motor
Automatic air shaft loading system
Automatic bag mouth punching system
German photo electric tracking eye
Taiwan Delta/ Xinjie computer controller.
Description
Technical Parameters
Product Description

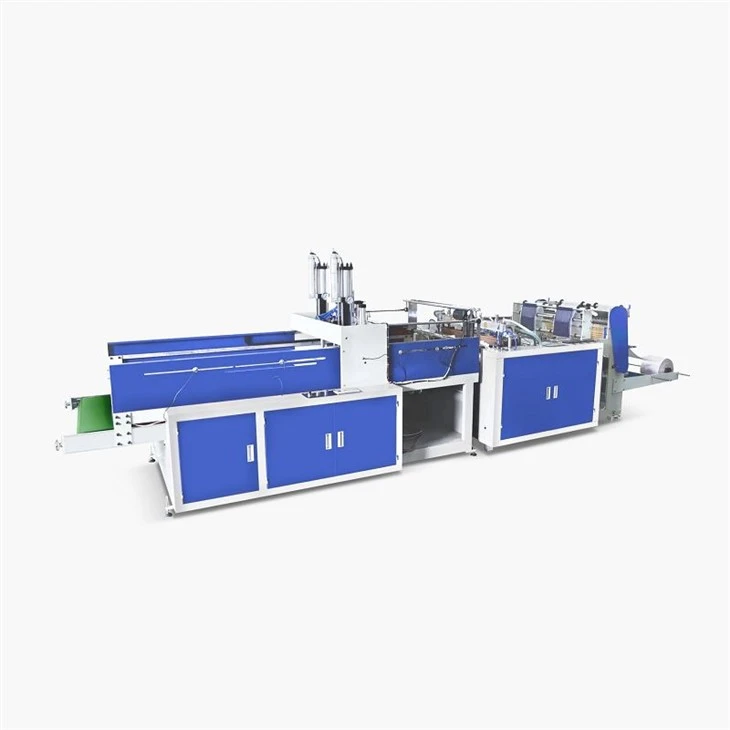

SX-AT700/900 Plastic carry bag making machine
Application/Features:
This plastic carry bag making machine is applied to manufacturing uncolored vest bags made of LDPE, LDPE roll film, it adopts PLC control, double servo (step) motor fixed length and the touch screen actual display.
From the feeding, sealing, cutting, punching mouth to transporting, it can finish only in one process, machine with high degree of automation and good economic result.
Machine Basic Parameters
|
Model |
SX-AT700 |
SX-AT900 |
|
Max Bag Making Width |
320 mm *2 |
420 mm *2 |
|
Max Bag Making Length |
650 mm |
800 mm |
|
Bag Making Thickness |
0.008-0.05 mm |
0.008-0.05 mm |
|
Bag Making Speed |
50-300 pcs/min *2 |
50-250 pcs/min *2 |
|
Air Pressure Requirement |
5 kg/cm2 |
5 kg/cm2 |
|
Length Precision |
±1 mm |
±1 mm |
|
Total Power |
12 kw |
16 kw |
|
Weight |
1400 kg |
1600 kg |
|
Overall Size (L x W x H) |
5500*1400*1700 mm |
5500*1600*1700 mm |
FAQ
How to place an order?
Product Consultation-> Business negotiation-> Provide plans-> follow-up matters-> arrange deposit-> production-> before delivery (if you need to check the goods, it can be notified us)-> Inspection-> payment settlement- > Packing and Delivery-> Preparations before the factory-> On-site Installation-> Service Feedback-> More cooperation and referral. Detailed content can be seen -trade processes.
Are you a factory?
We are a factory, located in Ruian, Zhejiang, China.
How much space does this machine take?
Different devices have different venue requirements. For details, please consult our sales service consultant.
How many personnel do I need to operate this machine?
SX-AT700/900 plastic carry bag making machine need one labor for machine operator.
What should I prepare before the equipment arrives at the factory?
We have a list and a spare parts procurement list to meet different needs of transaction customers.
