Plastic Film Cutting Machine
Produced by Shengxiang
Equipped with 4.4KW Japan Servo Motor
Mutsubishi PLC speical industrial controller
Automatic air shaft loading system (optional shaftless loading)

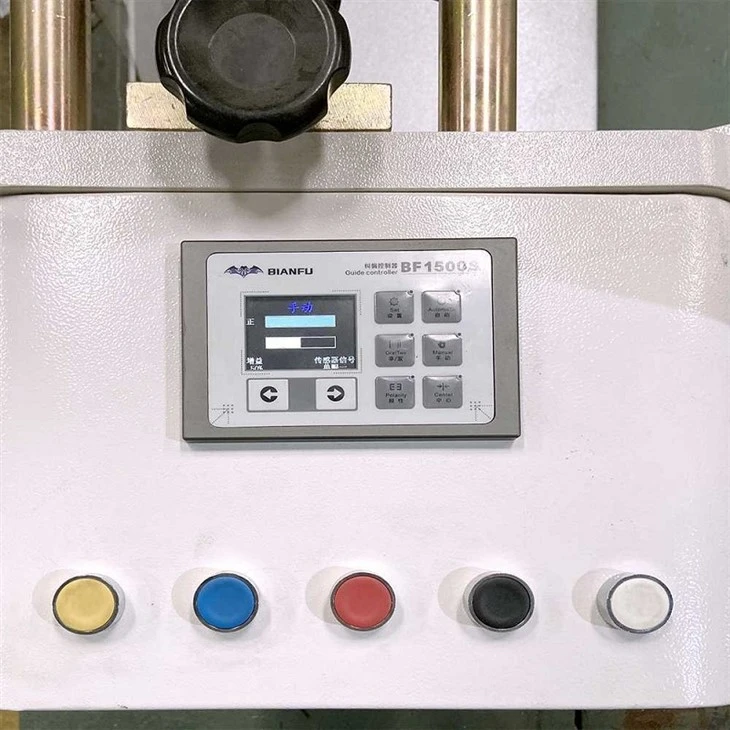

Automatic EPC system
Anti-scratched rollers
Automatic Convey table.
Description
Technical Parameters
Product Description
The SX-E1200 plastic film cutting machine is dedicated to cutting various plastic film rolls, such as BOPP, PET, OPP, PE, LDPE, HDPE, PVC, etc. The machine is equipped with vertical and horizontal function to support multi-sized cutting. The equipment uses anti-scratched aluminum rollers and edges to avoid the material scratching and affects the quality of the material.
The requirements of film cutting are high. Different thickness are obvious to collect neat difficulty in high-speed cutting. The E1200 thin film cross cutting machine meets the requirements of many customers. It is a thin film cutting device you deserve.
Machine Basic Parameters
|
Model |
SX-E800 |
SX-E1200 |
SX-E1400 |
|
Cutting Width |
700 mm |
1100 mm |
1300 mm |
|
Material Thickness |
30-60um |
30-60um |
30-60um |
|
Max Diameter of Material |
φ1000 mm |
φ1000 mm |
φ1000 mm |
|
Cutting Speed |
50-60 times/min |
50-60 times/min |
50-60 times/min |
|
Cutting Precision |
±0.2 mm |
±0.2 mm |
±0.2 mm |
|
Total Power |
6 kw |
7.5 kw |
8.5 kw |
|
Weight |
3200 kg |
3700 kg |
4000 kg |
|
Overall Size (L x W x H) |
6000*1700*1400 mm |
6000*2100*1400 mm |
6000*2300*1400 mm |
Regardless of the size of the cut size, we can provide or remove the vertical cut function according to your film thickness and cut size. Shengxiang has sufficient experience for thin film cutting. If your material requires special requirements, you can send us samples for testing.
We also have other higher outputs. Welcome to leave a message or to inquire about the Shengxiang film cutting machine at any time.
FAQ
How to place an order?
Product Consultation-> Business negotiation-> Provide plans-> follow-up matters-> arrange deposit-> production-> before delivery (if you need to check the goods, it can be notified us)-> Inspection-> payment settlement- > Packing and Delivery-> Preparations before the factory-> On-site Installation-> Service Feedback-> More cooperation and referral. Detailed content can be seen -trade processes.
Are you a factory?
We are a factory, located in Ruian, Zhejiang, China.
How much space does this machine take?
Different devices have different venue requirements. For details, please consult our sales service consultant.
How many personnel do I need to operate this machine?
SX-SH1100/1400/1600 Model Paper Cutting Machine with Auto Stacking need one labor for machine operator.
What should I prepare before the equipment arrives at the factory?
We have a list and a spare parts procurement list to meet different needs of transaction customers.
