Plastic Courier Bag Making Machine

SX-K800 1000 Plastic Courier Bag Making Machine
Provided by Shengxiang
Equipped with Stepping Motor control film feeding
Automatic air shaft loading system
Optional EPC system
Accurate and stable photocell tracking
Glue sprayer with glue stop function
Microcomputer control
Wooden collect plate.
Send Inquiry

Description

Technical Parameters


Product Description

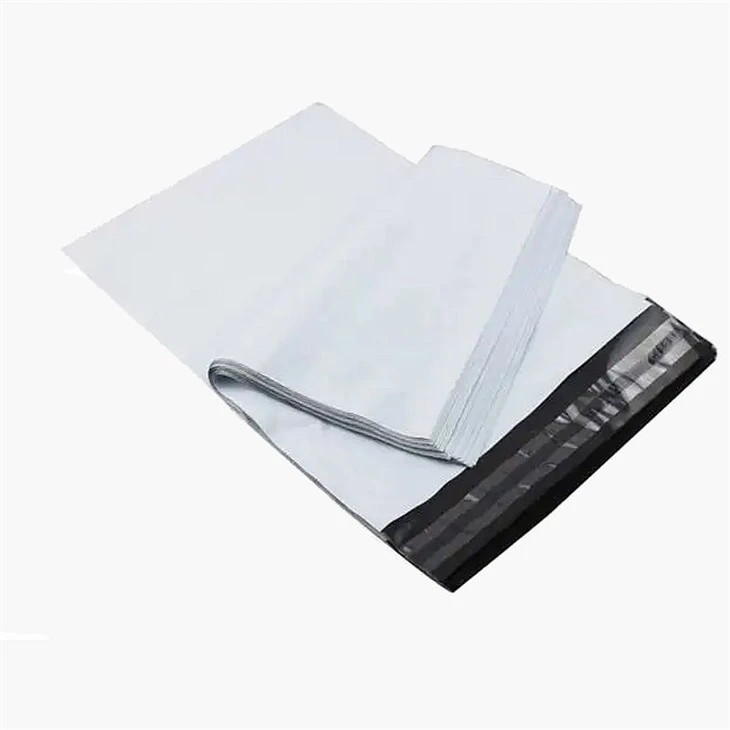

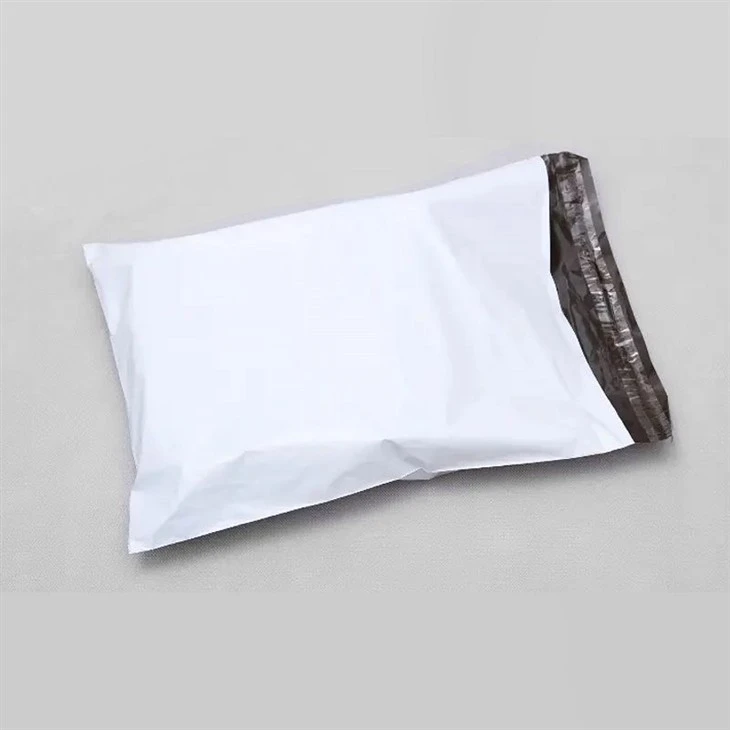

Single Line Plastic Courier Bag Making Machine for Express Bag and Courier Bag

This machine adopts materials made by double-layer co-extrusion blown film machine to make continuous glue wide courier bags.




Features:

1. The whole machine is controlled by microcomputer, and the material is driven by stepping motor (servo motor control system is optional).

2. Computer fixed length, high-precision photoelectric tracking, accurate and stable, automatic stop when pattern is lost, and photoelectric control the feeding part.

3. Automatic counting, counting alarm, can be set to stop according to the number of batches.

4. Machine can correcting the deviation of the material, separate two layer film.

5. The glue spraying equipment is equipped with no glue breaking function as standard, (the glue breaking function is optional, the glue spraying width can be adjusted, the glue breaking is accurate and clean, and there is no degumming).

6. The heat-sealing knife has been specially treated to cut the bag smoothly without sticking to the knife. The temperature is automatic and the sealing is firm and smooth.


Machine Basic Parameters

Model

SX-K800

SX-K1000

Max Bag Making Width

55-780 mm

55-980 mm

Max Bag Making Length

60-600 mm

60-600 mm

Bag Thickness

0.02-0.08 mm

0.01-0.10 mm

Bag Making Speed

40-220 pcs/min

40-220 pcs/min

Total Power

4.5 kw

5.5 kw

Voltage

220V/380V

220V/380V

Weight

1200 kg

1500 kg

Machine Size

3570*1320*1840 mm

3570*1520*1840 mm




FAQ

How to place an order?

Product Consultation-> Business negotiation-> Provide plans-> follow-up matters-> arrange deposit-> production-> before delivery (if you need to check the goods, it can be notified us)-> Inspection-> payment settlement- > Packing and Delivery-> Preparations before the factory-> On-site Installation-> Service Feedback-> More cooperation and referral. Detailed content can be seen -trade processes.



Are you a factory?

We are a factory, located in Ruian, Zhejiang, China.



How much space does this machine take?

Different devices have different venue requirements. For details, please consult our sales service consultant.



How many personnel do I need to operate this machine?

SX-K800 1000 Plastic courier bag making machine need one labor for machine operator.



What should I prepare before the equipment arrives at the factory?

We have a list and a spare parts procurement list to meet different needs of transaction customers.
