Silicone Paper Butter Paper Cutting Machine

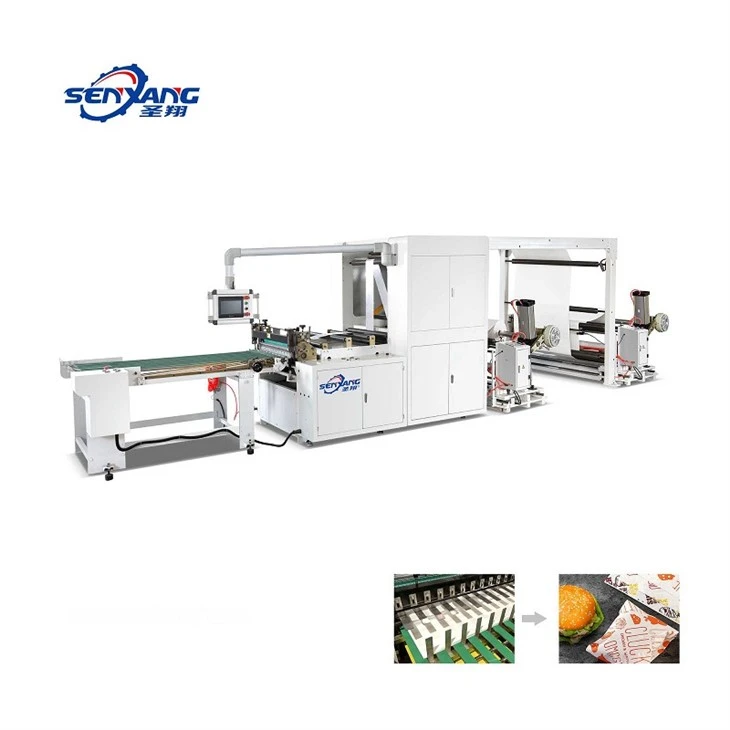

SX-H1100-2R Silicone Paper Butter Paper Cutting Machine
Produced by Shengxiang
Equipped with 3.0KW Japan Servo Motor
Mutsubishi PLC speical industrial controller
Automatic air shaft loading system (optional shaftless loading)
Automatic EPC system for each rolls
Photo electric tracking eye
Automatic convey system.
Send Inquiry

Description

Technical Parameters


Product Description

SX-H1100-2R type Silicone paper butter paper cutting machine is suitable for different coils. Burger paper, chicken buger paper, wrapped food paper, ice cream paper, various membranes such as PVC, PET, PE, PP, PP, PP , OPP membrane roll. The machine can cut 2 volumes at the same time. Each material feeding part is equipped with a correction control system, automatic tension control, and pneumatic material loading, which can be raised with a maximum diameter of 1 meter. The printing pattern is accurately tracking, the vertical cutting into suit width, final through cross cutting, the finished sheets are collected on the conveyor.



This is an excellent thin paper and thin film cutting equipment, automatic first stage conveying, and optional lifting transmission.


Machine Basic Parameters

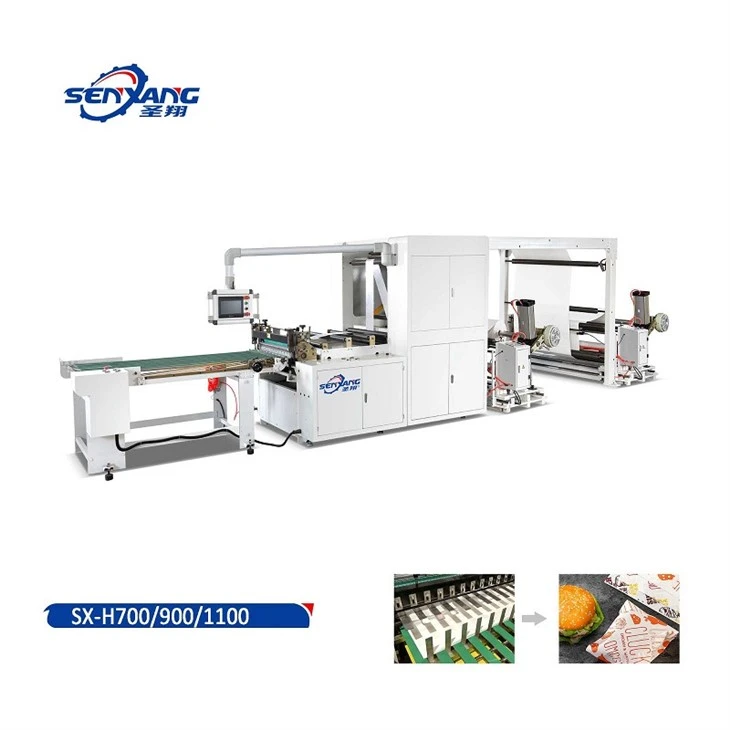

Model

SX-H700-2R

SX-H900-2R

SX-H1100-2R

Cutting Width

550 mm

750 mm

950 mm

Max Diameter of Material

φ1000 mm

φ1000 mm

φ1000 mm

Length of Cutting

20-1200 mm

20-1200 mm

20-1200 mm

Cutting Speed

30-150 times/min

30-150 times/min

30-150 times/min

Cutting Precision

±0.2 mm

±0.2 mm

±0.2 mm

Total Power

7.5 kw

8 kw

8.5 kw

Weight

3200 kg

3500 kg

3800 kg

Overall Size (L x W x H)

9000*1600*2000 mm

9000*1750*2000 mm

9000*1900*2000 mm



What if I can't find the right one, what should I do?

Provide your material characteristics, we can recommend appropriate cutting methods according to the requirements of your materials.

You only need to provide the following information for us:

1. Your material and scope of thickness

2. Your material width, maximum material diameter, and paper core diameter

3. The size you want to cut

4. The output you want to reach

5. Your other special requirements



Our sales representative will read the information you provided carefully and contact you to recommend the right style.




FAQ

How to place an order?

Product Consultation-> Business negotiation-> Provide plans-> follow-up matters-> arrange deposit-> production-> before delivery (if you need to check the goods, it can be notified us)-> Inspection-> payment settlement- > Packing and Delivery-> Preparations before the factory-> On-site Installation-> Service Feedback-> More cooperation and referral. Detailed content can be seen -trade processes.



Are you a factory?

We are a factory, located in Ruian, Zhejiang, China.



How much space does this machine take?

Different devices have different venue requirements. For details, please consult our sales service consultant.



How many personnel do I need to operate this machine?

SX-H700/900/1100-2R Model Paper Cutting Machine with Auto Convey need one labor for machine operator.



What should I prepare before the equipment arrives at the factory?

We have a list and a spare parts procurement list to meet different needs of transaction customers.
