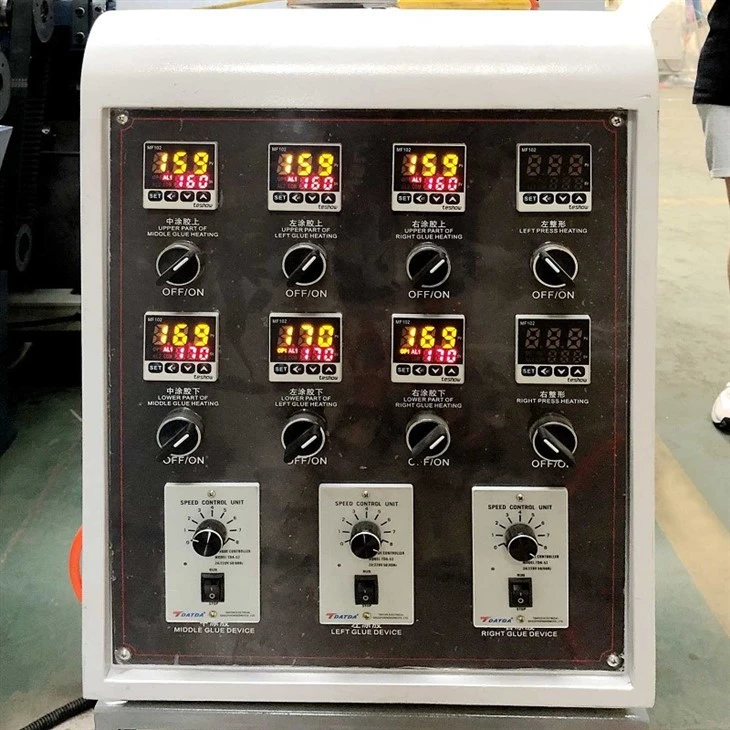

PRGULE~1

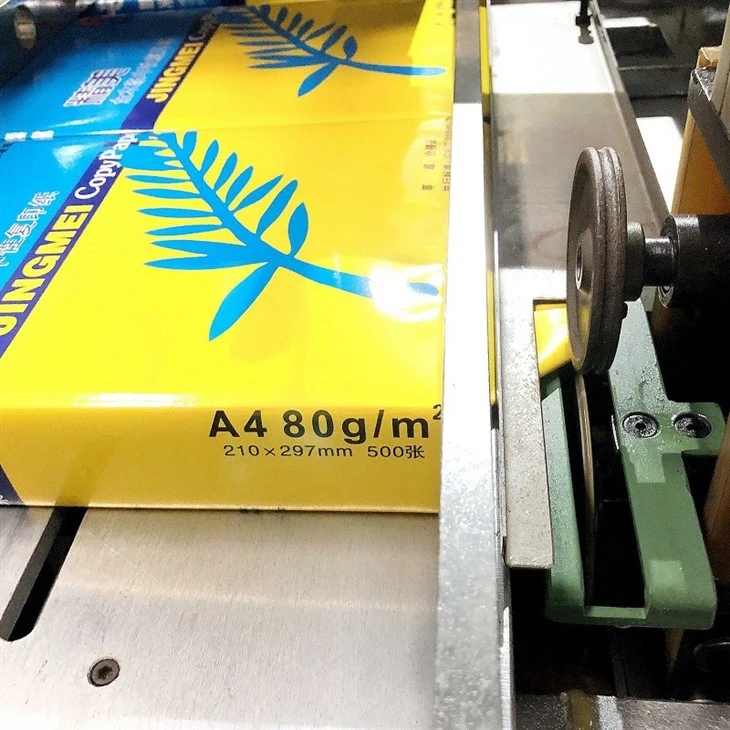

PR Guling(001)

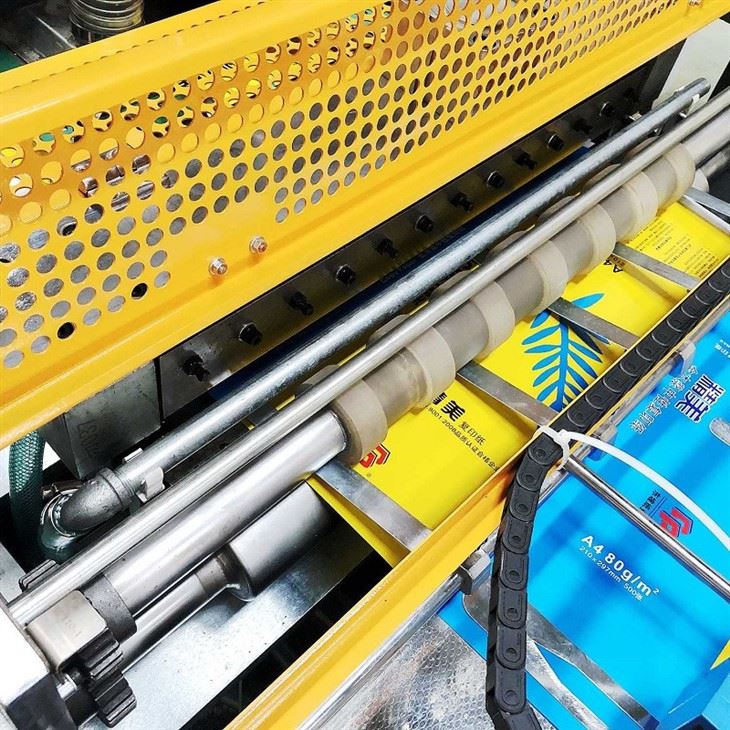

PR Package Sheet Cut(001)

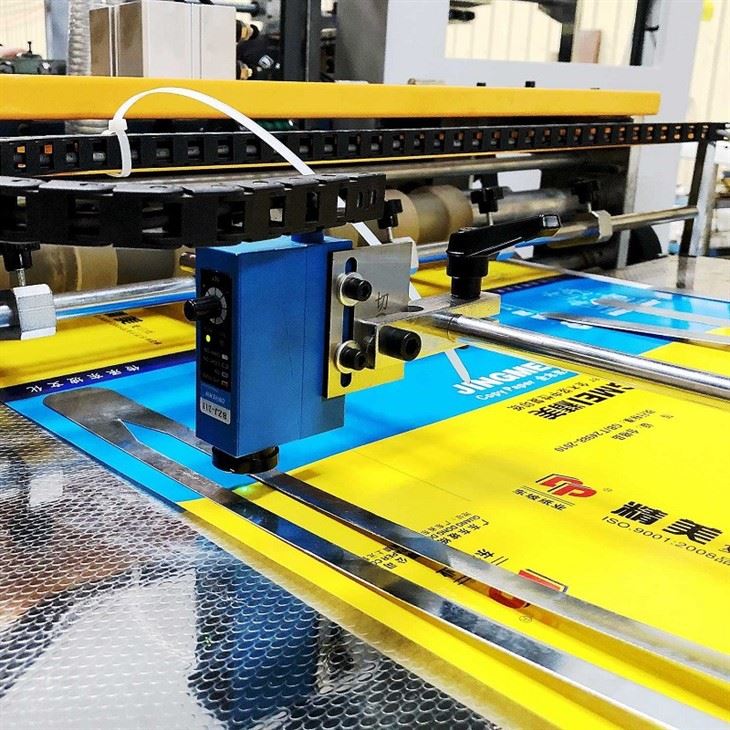

Printing Tracking(001)

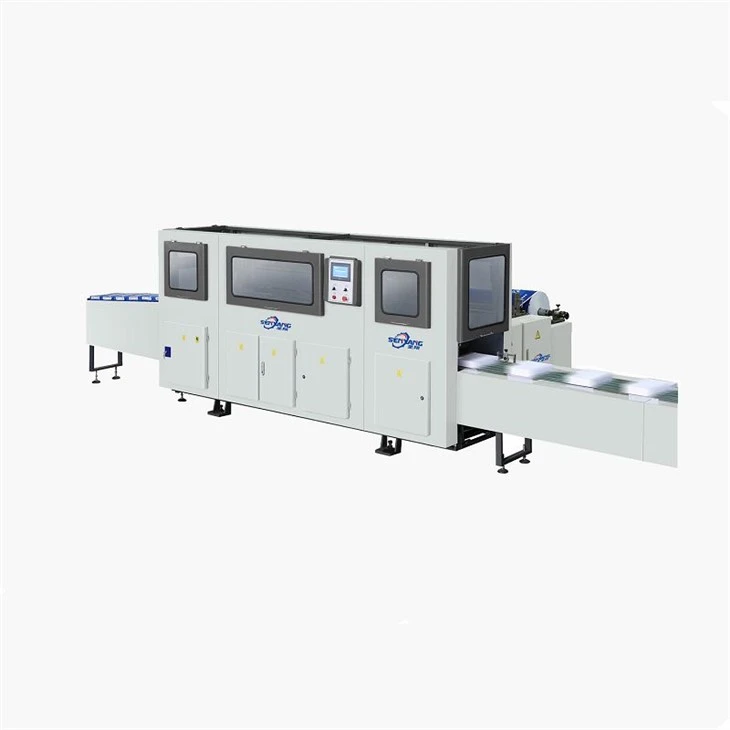

A4 Paper Ream Packaging Machine

SX-PR A4 Paper Ream Packaging Machine
Productivity / Capacity 10-12 Ream/Min
Suitable for the packaging of global A4 (210 × 297 mm) copy paper
PLC numerical control system
Fully automatic connectable paper cutting machine
Match with automatic glue rolling machine.

Send Inquiry

Description

Technical Parameters

Product Description

SX-PR A4 Paper Ream Packaging Machine is suitable for the packaging of global A4 format antistatic copy paper, instead of manual packaging, reducing the work intensity and improving the work efficiency ,The packaging machine can be connected with the paper cutter to realize the automatic cutting and packaging process from coil to paper packaging.

Specifications of the wrapping paper and output of the machine:

1. Product package specification 210x297x 50mm (according to A4 copy paper 500 sheet lamination altimeter).

2. Outsourced paper specifications (550-560mm x 386mm).

3. The paper packing efficiency is 10-12 Ream/Min per minute.

4. One ton of wrapping paper can pack 50000 packets of copy paper.

5. Floor area: 5900MM*3550MM

Machine Basic Parameters

Model	SX-PR
Capacity	10-12 Ream/Min
Automatic Cross-cutting Paper Feeding Function for Reel Outlet Paper	10-12Pcs/Min
Packaging specifications	210×297×50mm(according to A4 copy paper 500 laminated height)
Specification for outsourced paper (length and width)	550-560mm×386mm
Electric request	380v 3 phase, 4 lines
Total Power	7KW
Roller Power	3.7kw
Compressed power	0.6-0.8 Mpa
Overall Size	3400mm×3000mm×1600mm
Weight	2T
Application	The packing material is the wrapping of the hexahedron printed on the adhesive paper

The working process of the copy paper package packing machine:

In the process of conveying paper, the automatic feeding is driven by a series of mechanical structures and connected pneumatic devices inside the machine, and the cam rotates to drive the connecting rods, cross-cutting paper feeding functions and working parts. in the process of packaging, many actions such as automatic paper feeding, paper dropping, glue spraying and wrapping are quickly completed, and then the packaging paper is put into the carton manually.

The machine integrates optics, machinery, electricity, pneumatic and instruments with reasonable structure, advanced technology and easy operation.

What size of paper can the machine pack?

The machine can only pack A4 size paper (other sizes can be customized)
