Central Drum Flexo Printing Machine

SX-CI central drum flexo printing machine is designed for printing on various packaging materials including paper material ranging from 20-350gsm and plastic films such as PE, BOPP, OPP, VCP, PET and others. It provides an excellent solution for printing on paper packaging bags for food, grocery, non-woven bags, vest bags, clothes bags and much more. It is a versatile printing machine that helps to ensure high-quality printing on different materials to meet the diverse needs of various industries. It is an ideal equipment for producing high-quality packaging products that meet the standard requirements of today's market.

1.a central impression type that produces better color registration. The large drum supports the printed material and greatly improves registration accuracy, particularly with stretchable materials.

2.All printing stations for each color are driven by the central drum, resulting in fewer transmission errors and increased precision in registration.

3.The machine is equipped with high-quality motors and inverters, which saves on electricity and reduces fluctuations in operation.

4.The machine is furnished with a blower and heater; the heater utilizes a central temperature control system comprising of an automatic temperature controller, and a heat source that is separate.

5.The utilization of a separate drying oven and a cold wind system can efficiently prevent ink adhesion after printing.

6.The roller is made of special steel after undergoing specialized processing, which significantly reduces the beating range.

7.The printing roller is processed using both static and dynamic balancing techniques, and undergoes hard anodization treatment to minimize resistance and achieve a flawless printing result.

8.The use of a specialized gear transmission device enables the printing machine to achieve precise and accurate printing results.

9.The printing machine is equipped with advanced configurations to ensure high-quality and high-definition printing outcomes.

The big drum never leaves the space between colors, ensuring better registration. Machine parts are standardized for easy availability and designed for low wear. A hot-wind dryer with automatic temperature control is used for drying printing materials, with safety provided by a separate heater box.

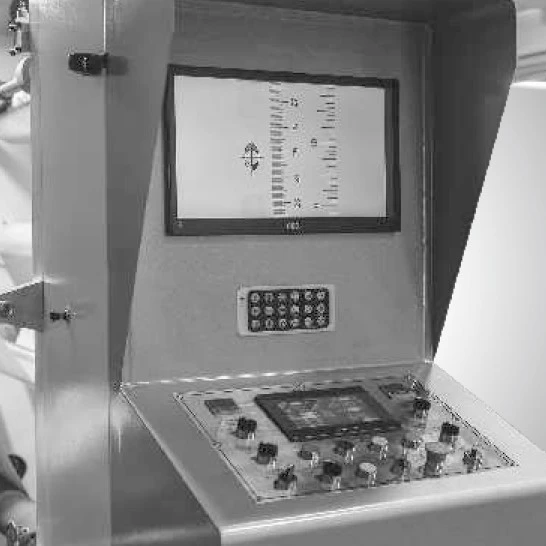

The doctor blade chamber is designed for high-speed and quality printing applications. Machine uses a high-performance vector motor and features multiple buttons placed in strategic locations for easy machine startup, speed control, and stoppage. This enhances operator convenience and efficiency.

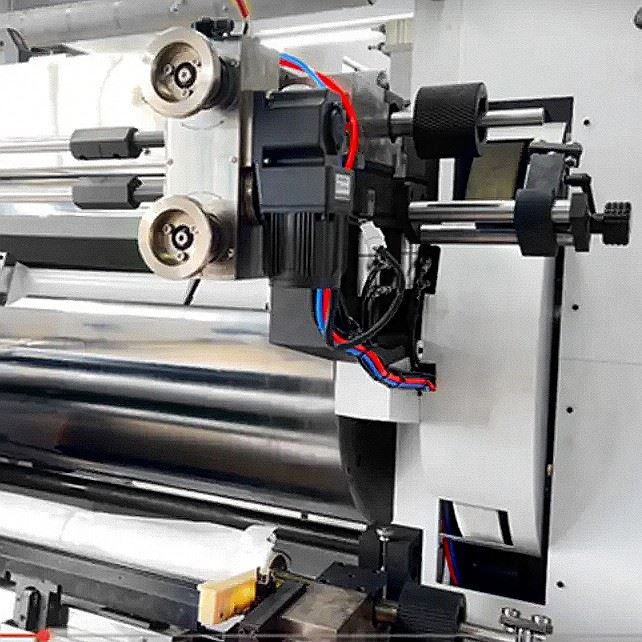

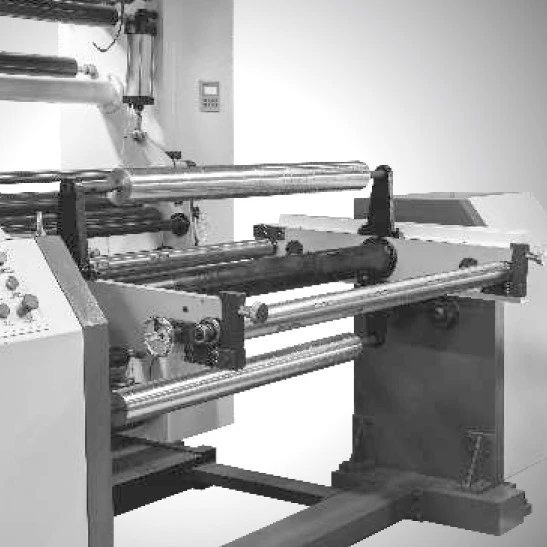

Upon starting up, the machine automatically reaches the pre-set speed for optimal performance. It features a rewinder that is driven by a high-performance AC motor and a low-friction cylinder for maintaining stable web tension. The color registration is of the electric motor type, while push buttons are available for up, down, left, and right movements

How to place an order?

Product Consultation-> Business negotiation-> Provide plans-> follow-up matters-> arrange deposit-> production-> before delivery (if you need to check the goods, it can be notified us)-> Inspection-> payment settlement- > Packing and Delivery-> Preparations before the factory-> On-site Installation-> Service Feedback-> More cooperation and referral. Detailed content can be seen -trade processes.

Are you a factory?

We are a factory, located in Ruian, Zhejiang, China.

How much space does this machine take?

Different devices have different venue requirements. For details, please consult our sales service consultant.

How many personnel do I need to operate this machine?

SX-CI Central drum flexo printing machine Need One Labor.

What should I prepare before the equipment arrives at the factory?

We have a list and a spare parts procurement list to meet different needs of transaction customers.
