Flexo Printing Equipment
video

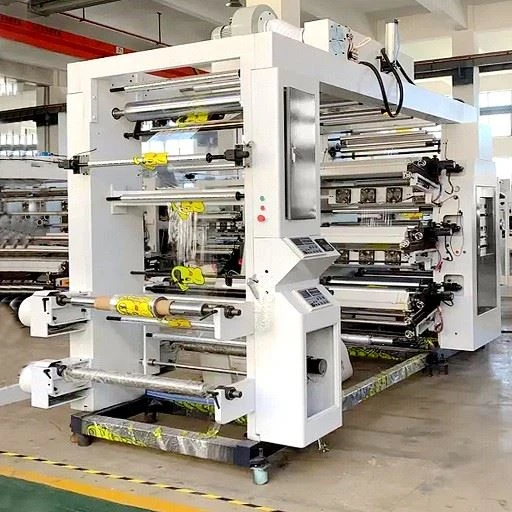

Flexo Printing Equipment

YT-6 flexo printing equipment
Provided by Shengxiang
Equipped with China Motor
Automatic tension control
Automatic air shaft loading system (optional)
Automatic EPC system
Automatic ink running motor when machine stop
Pneumatic type printing cylinder lifting.
Send Inquiry

Description

Technical Parameters


Product Description

This flexo printing equipment boasts dependable and time-tested technology, utilizing resilient photosensitive resin plates or rubber plates, in conjunction with metal anilox rollers for superior ink transfer. Committed to eco-friendliness, it utilizes water-based liquid ink to produce top-notch prints. Its immense flexibility makes it ideally suited for printing on a vast array of packaging materials, including film, paper, non woven, polyethylene, cellophane, and roll paper.




Machine Basic Parameters

Model

YT-6600

YT-6800

YT-61000

YT-61200

Max Material Width

600 mm

800 mm

1000 mm

1200 mm

Max Printing Width

560 mm

760 mm

960 mm

1160mm

Suitable Material

PAPER:15-300g/m, NONWOVEN:15-120GSM,

PVC:10-120μm, OPP:10-100μm, BOPP:10-100μm, PE:15-150μm

NY:10-120μm, PET:10-100μm, CPP:10-100μm

Printing Length

220-1000mm

Principle of Work

Helicar gear with belt driving

Printing Color

6 Colors, 6+0, 5+1, 4+2, 3+3

Printing Length

Standard in 400mm, Customized is available from 300-1000mm

Machine speed

100 m/min

printing speed

70-80 m/min

printing precision

±0.25 mm

Plate thickness

1.7mm, 2.28mm

Customized is available




Optional Function

1.

Ceramic anilox Roller

2.

Hydraulic type printing cylinder lifting

3.

Camera

4.

Auto loading and unloading

5.

Auto loading,and surface rewinding with motor



This incredible flexo printing machine is incredibly versatile and can print a wide range of materials, including paper roll, plastic film, non woven fabrics, PP woven sacks, thin film, and all sorts of soft package roll materials. Its adaptable design allows you to meet a wide range of printing needs and achieve good print effect. By using this machine, you can create prints with ease and efficiency.




FAQ

How to place an order?

Product Consultation-> Business negotiation-> Provide plans-> follow-up matters-> arrange deposit-> production-> before delivery (if you need to check the goods, it can be notified us)-> Inspection-> payment settlement- > Packing and Delivery-> Preparations before the factory-> On-site Installation-> Service Feedback-> More cooperation and referral. Detailed content can be seen -trade processes.



Are you a factory?

We are a factory, located in Ruian, Zhejiang, China.



How much space does this machine take?

Different devices have different venue requirements. For details, please consult our sales service consultant.



How many personnel do I need to operate this machine?

YTB-6 flexo printing equipment Need One Labor.



What should I prepare before the equipment arrives at the factory?

We have a list and a spare parts procurement list to meet different needs of transaction customers.

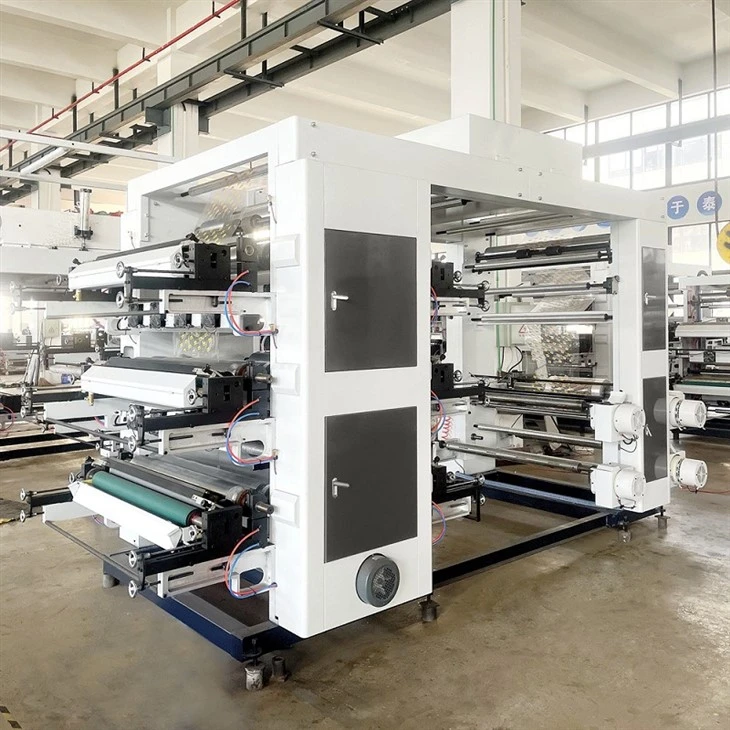

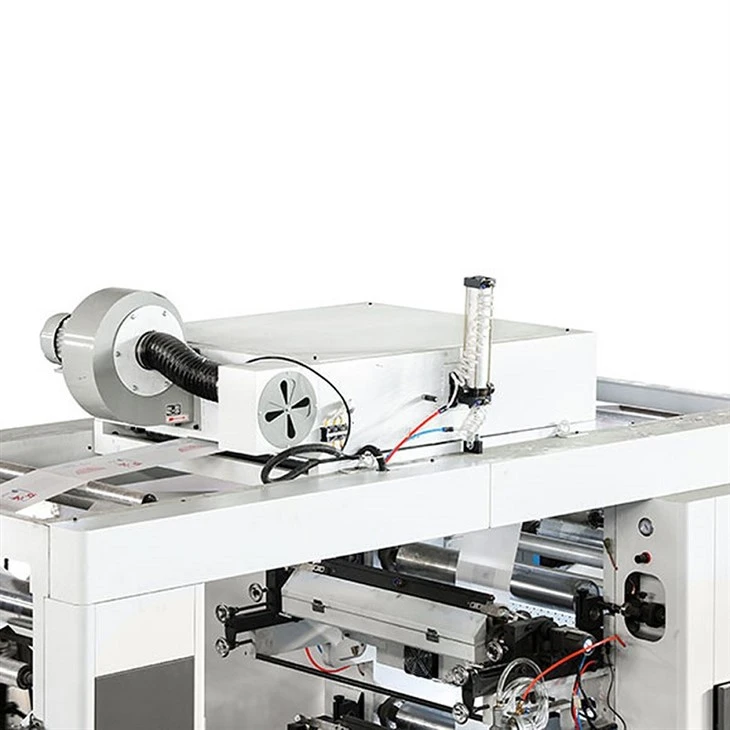

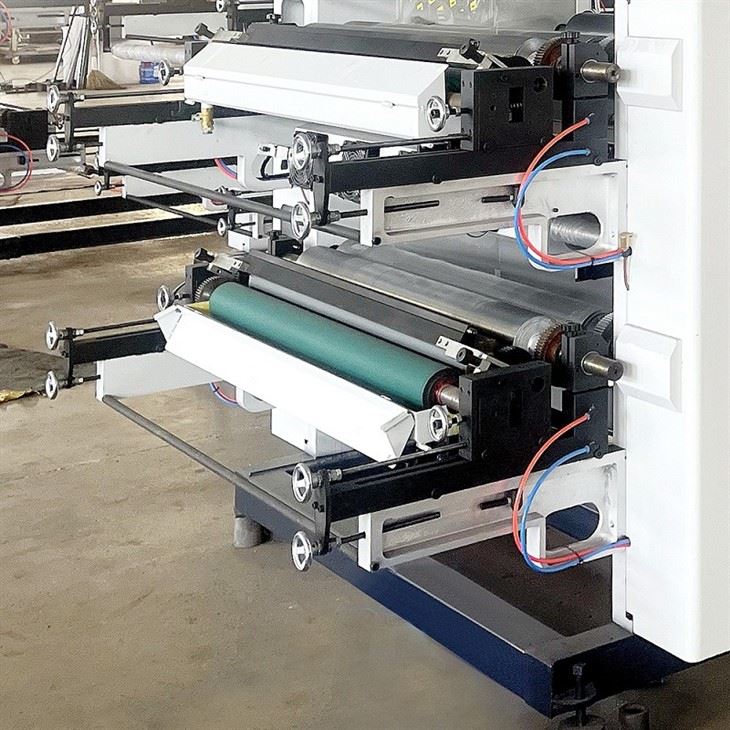

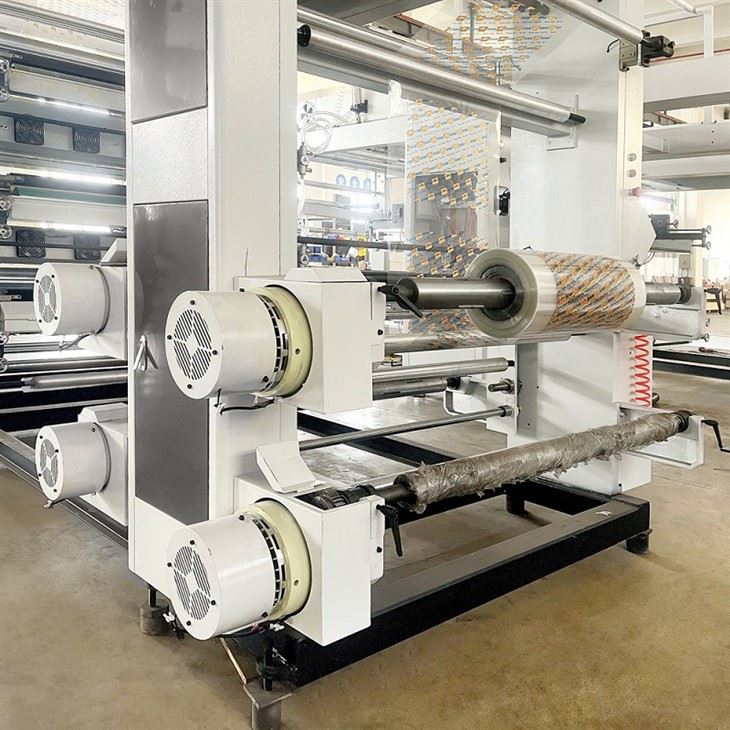

Product Details
