A4 Paper Cutting and Packing Machine
Produced by Shengxiang
Equipped with 4.4KW Japan Servo Motor

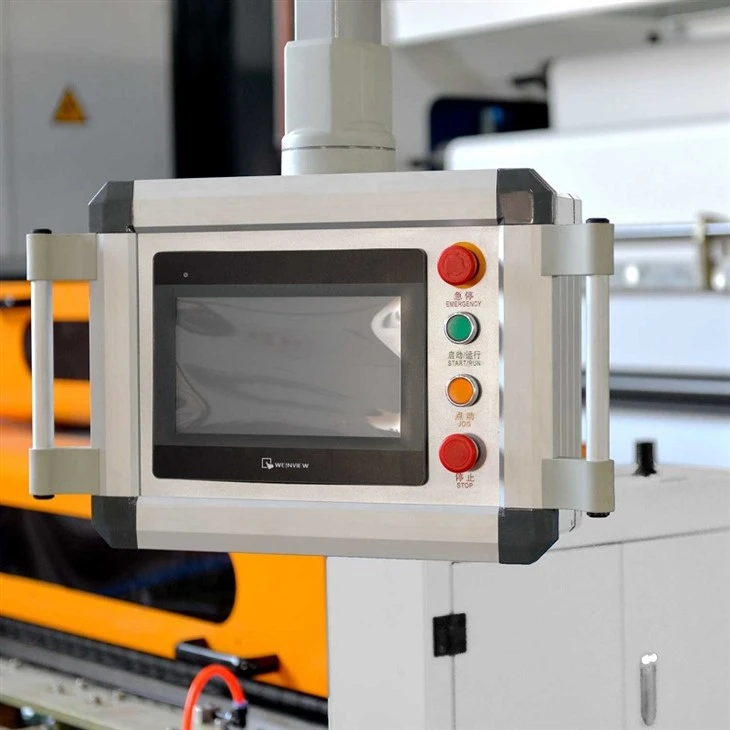

Mutsubishi PLC speical industrial controller

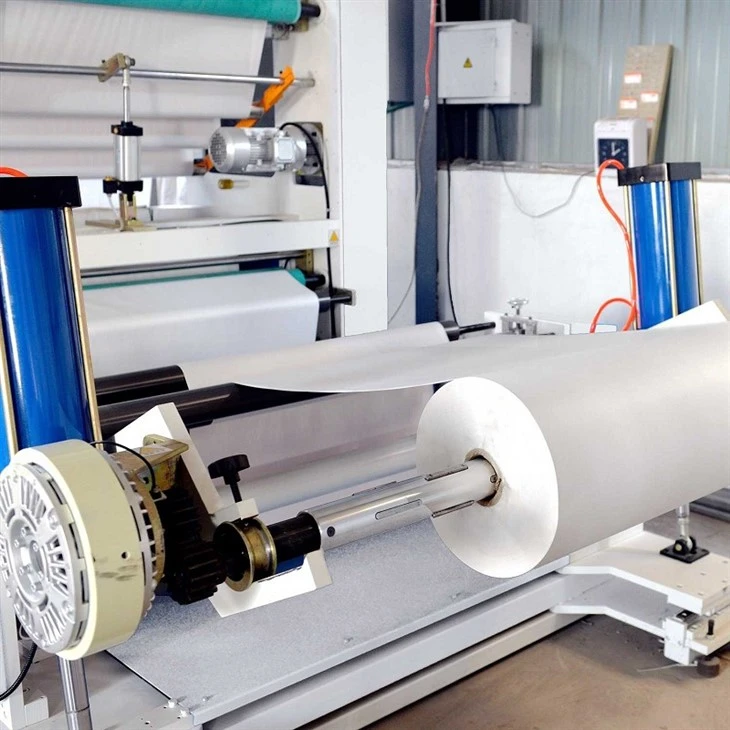

Automatic air shaft loading system (optional shaftless loading)
Automatic EPC system

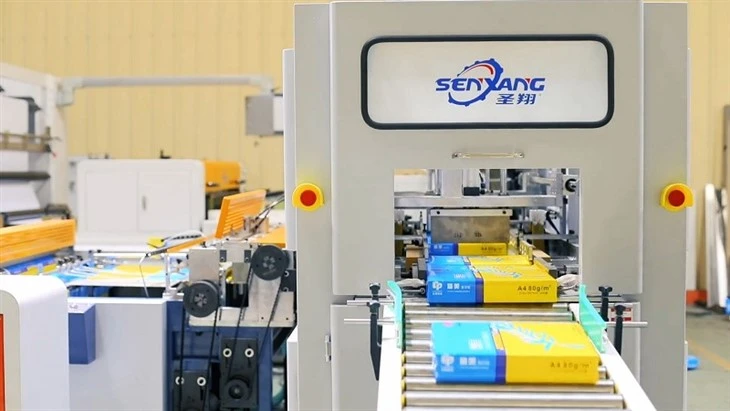

Automatic A4 ream packing system
Ensure A4 paper cutting and packing.
Description
Technical Parameters
Product Description

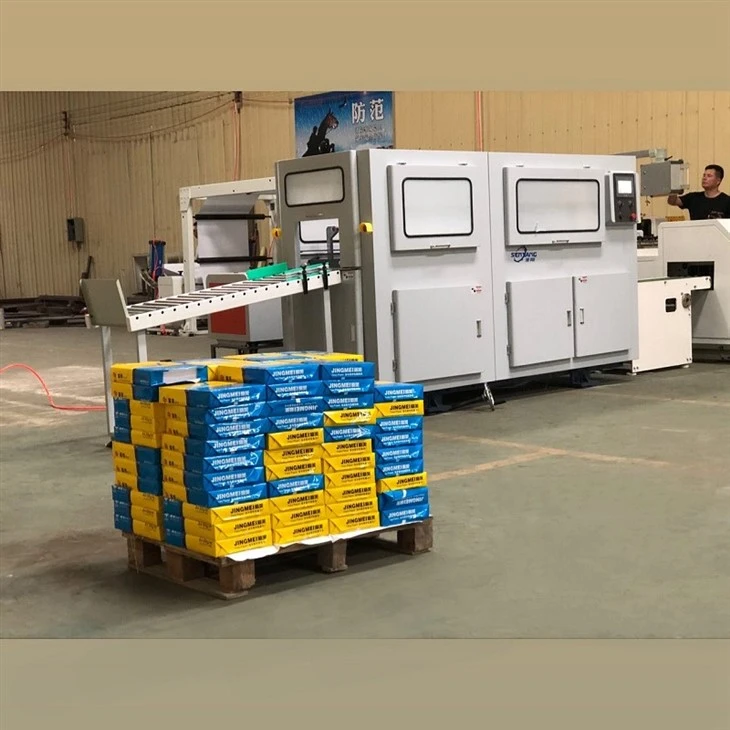

SX-A1100-2R Model A4 paper cutting and packing machine is widely used in A4 or A3 copy paper single size cutting and ream packing. The machine can support 2 rolls of paper rolls and cuts at the same time. According to the width provided by the customer, the paper roll with a maximum load of 1.5 tons of 1060mm width. There has an independent original paper storage buffer area for each roll of paper rolls, which can greatly avoid the discrete of paper rolls during the high-speed operation of the machine. After cross cutting and two transportation, the paper will enter the beating device and collect it neatly to the side delivery area. When the number of paper reaches 500 sheets, the side delivery action is performed.
The A4 paper cutting and packing machine is equipped with an online ream paper packaging function to place the predicted composite or laminated packaging paper rolls on the packaging site of the packaging machine for packaging paper cutting, glue, and packaging. Follow-up will be placed in the prepared carton to be placed by your employee.
This is a device suitable for newly incoming A4 copy paper business. It has a high degree of automation and saves your labor costs.
Machine Basic Parameters
|
Model |
SX-A1100-2R |
SX-A1400-2R |
|
Cutting Width |
1060 mm |
1360 mm |
|
Min Vertical Cutting Width |
50 mm |
50 mm |
|
Max Diameter of Material |
φ1400 mm |
φ1400 mm |
|
Length of Cutting |
30-400 mm |
30-400 mm |
|
Cutting Speed |
20-150 times/min |
20-150 times/min |
|
Cutting Precision |
±0.2 mm |
±0.2 mm |
|
Total Power |
16.5 kw |
19 kw |
|
Weight |
7000 kg |
8000 kg |
|
Overall Size (L x W x H) |
9600*5000*2200 mm |
9600*5300*2200 mm |
Machine Actual Output
|
Model |
SX-A1100-2R |
SX-A1400-2R |
|
Cutting Width |
1060 mm |
1360 mm |
|
One Time Cut |
A4 5 pcs |
A4 6 pcs |
|
Feeding Rolls |
2 rolls |
2 rolls |
|
Cutting Speed |
150 times/min |
150 times/min |
|
Min. Output in Sheets |
1500 sheets/min |
1800 sheets/min |
|
Min. Output in Ream |
3 reams/min |
3.6 reams/min |
|
Hr. Output in Ream |
180 reams/min |
216 reams/min |
|
D. Output in Ream |
1440 reams/8hr |
1728 reams/8hr |
|
Output in Ream |
37440 reams/26d |
44928 ream/26d |
Under the years of research and development and improvement of Shengxiang Machinery, SX-A1100-2R Model A4 Paper Cutting and Ream Packaging Machine has outstanding performance on the cutting paper and online packaging. It not only meets the needs of customers to produce copy paper efficiently, but also ensures the cutting accuracy and quality of finished paper. The connection packaging greatly reduces the cost of artificial packaging.
Product advantages
1. Stability
2. Efficient
3. Innocent
4. High degree of automation
Equipment quality control
Shengxiang Machinery has carried out a deep understanding of the details of the equipment since 2010, manufacturing and sales of cutting equipment. The company has a senior mechanical designer, a professional regulator, and a strict product controller to ensure the process before the device is delivered. Before the factory, the equipment will be delivered after the machine will be completely tested.
After-sales Service and installation
Shengxiang provides high-quality after-sales service, which can support engineers to install and train paid services to come factory installation and training. Generally, the cycle can be completed within 7-10 days. You will be a long -term partner for our lifetime maintenance. Establish an exclusive online after-sales service channel. When there is a failure issue, it is more effective and provides exclusion methods as soon as possible within 1-2 days. In case of quality problems in equipment accessories, Shengxiang can provide free original spare parts for replacement. Specific resolution rules can consult our sales service consultant.
FAQ
How to place an order?
Product Consultation-> Business negotiation-> Provide plans-> follow-up matters-> arrange deposit-> production-> before delivery (if you need to check the goods, it can be notified us)-> Inspection-> payment settlement- > Packing and Delivery-> Preparations before the factory-> On-site Installation-> Service Feedback-> More cooperation and referral. Detailed content can be seen -trade processes.
Are you a factory?
We are a factory, located in Ruian, Zhejiang, China.
How much space does this machine take?
Different devices have different venue requirements. For details, please consult our sales service consultant.
How many personnel do I need to operate this machine?
SX-A1100-2r Model A4 Paper Cutting and Ream Packaging Machine Need Two Labor. One for Machine Operator, One for Finished Paper Ream Packaging.
What should I prepare before the equipment arrives at the factory?
We have a list and a spare parts procurement list to meet different needs of transaction customers.
