A4 Sheet Cutter
video

A4 Sheet Cutter

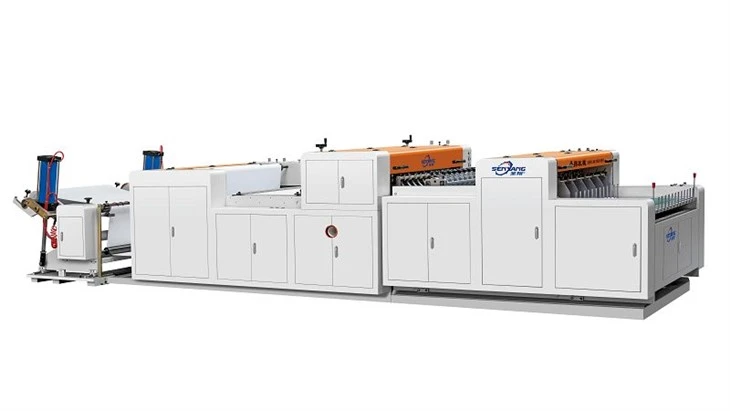

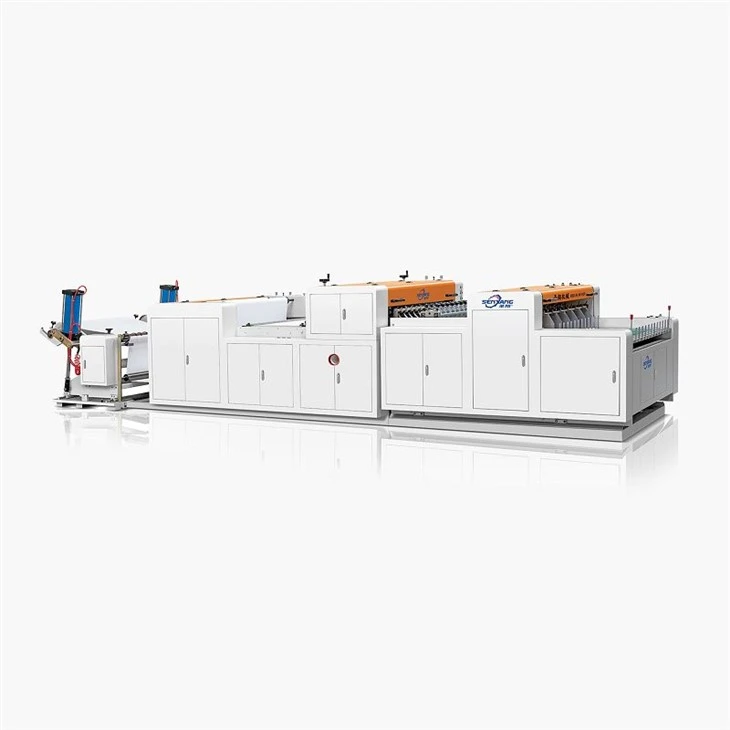

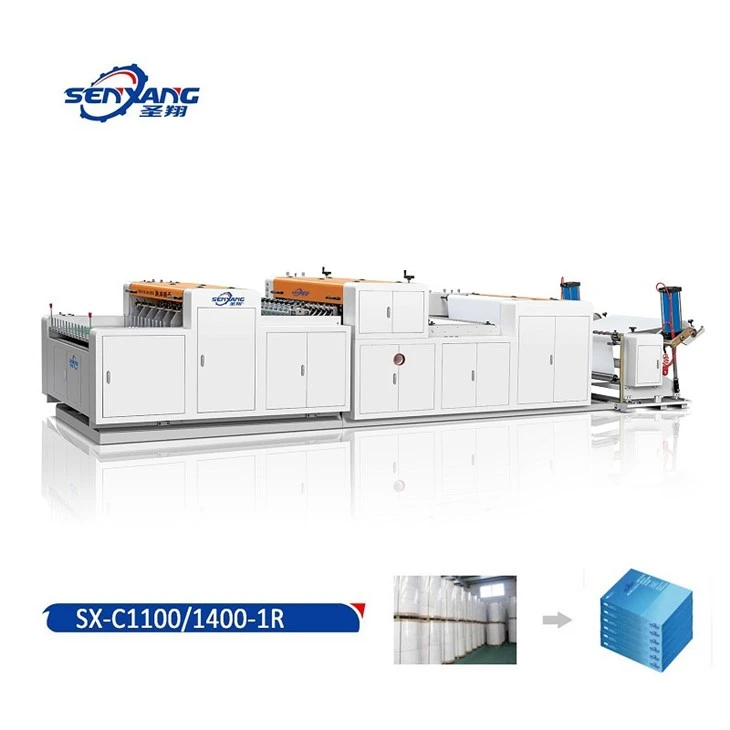

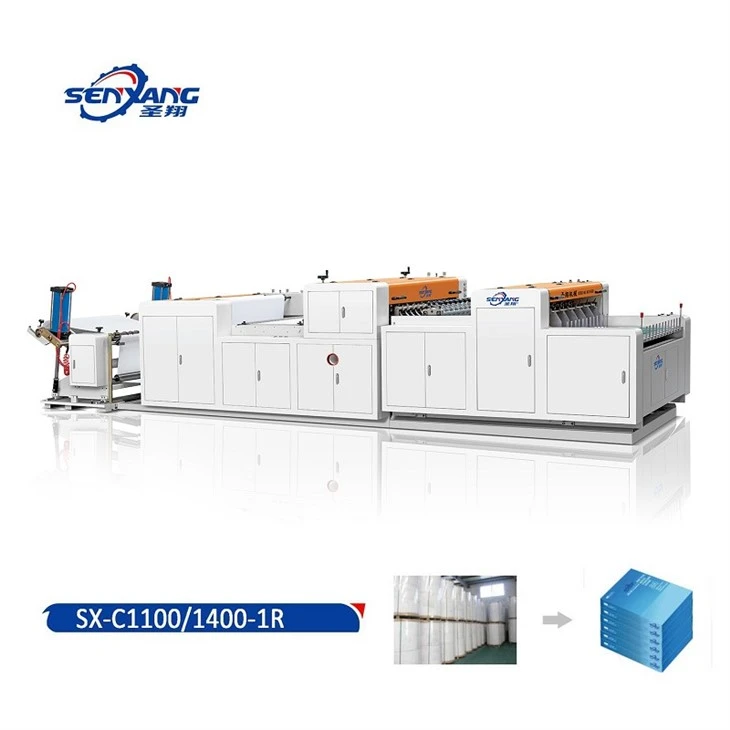

SX-C1100-1R A4 Sheet Cutter
Produced by Shengxiang
Equipped with 3.0KW Japan Servo Motor
Mutsubishi PLC speical industrial control system
Auto air shaft loading system (optional shaftless loading)
Auto edge position control system
Auto shutdown when materials are used up
Ensure your paper production.
Send Inquiry

Description

Technical Parameters


Product Description

The SX-C1100-1R type A4 sheet cutter is widely used in large-scale rolls such as cutting printing paper, leather paper, and other large rolls. It is a device specifically used to cut A4 or A3 copy paper. The device has a second stage conveyor, that is, after cutting, after a transmission, the paper enters the collection area, and after the campaign is collected and collected, it is transported forward again. If you need to cut other sizes, you can confirm the feasibility with the sales consultant by adjusting the position of the round knife and the collection board.



This is a device suitable for small batch orders. It is easy to install and easy to use. It only needs to operate alone to save artificially.


Machine Basic Parameters

Model

SX-C1100-1R

SX-C1400-1R

Cutting Width

1060 mm

1360 mm

Min Vertical Cutting Width

50 mm

50 mm

Max Diameter of Material

φ1400 mm

φ1400 mm

Length of Cutting

30-400 mm

30-400 mm

Cutting Speed

20-150 times/min

20-150 times/min

Cutting Precision

±0.2 mm

±0.2 mm

Total Power

8.5 kw

10 kw

Weight

4500 kg

5000 kg

Overall Size (L x W x H)

7500*2200*1400 mm

7500*2500*1400 mm




Machine Actual Output

Model

SX-C1100-1R

SX-C1400-1R

Cutting Width

1060 mm

1360 mm

One Time Cut

A4 5 pcs

A4 6 pcs

Feeding Rolls

1 rolls

1 rolls

Cutting Speed

150 times/min

150 times/min

Min. Output in Sheets

750 sheets/min

900 sheets/min

Min. Output in Ream

1.5 reams/min

1.8 reams/min

Hr. Output in Ream

90 reams/min

108 reams/min

D. Output in Ream

720 reams/8hr

864 reams/8hr

Output in Ream

18720 reams/26d

22464 ream/26d



The machine uses a 16mm thick high quality iron plate as a rack, and the No. 10 slot steel bar is supported. The equipment selected by the device has been verified after many years. If there are special requirements, we can try to replace the brand you are more used to use to facilitate your after sales.



Regarding installation, a total of 3 parts of the C1100-1R equipment consisting of 3 parts. Installation is not difficult, you can choose to install or engineer on your own. We can provide the corresponding installation pictures and machine running videos to facilitate understanding how to install and wear materials. If your staff has no relevant mechanical experience, it is recommended to choose to install on the door. We can arrange for the door within the week of the machine to your factory, but you need to pay the corresponding fee. For specific arrangements, please consult with our sales consultant.



Regarding after-sales, Shengxiang provides a year of warranty services. During the warranty period, if the accessories are damaged due to quality problems, it is confirmed that it is not caused by human operating problems and normal wear after inspection, and free accessories are provided for replacement. In the end of the deadline, Shengxiang will continue to provide customers with long-term paid after -sale services to ensure the normal operation of the equipment.




FAQ

Can you provide paper reels for the industry?

Actually, we are a machine manufacturer. If you require paper roll suppliers, we can assist you in finding some reliable companies in China.



Is the machine a complete production line?

Yes, the A series of machines are a full production line, from paper roll to cutting sheets and packing them into reams. However, you also have the option to purchase B series just the paper roll to sheets cutting unit in the beginning. For C series of The paper cutting machine unit, you can choose packaging by hand or separete ream wrapping machine.



Do you have more advanced capacity machines, such as those that can produce 10 or 20 reams per minute?

Yes, we do not manufacture high-speed production lines ourselves but we have good relationships with high-capacity machine suppliers. We can help you negotiate with them to find the best solution for your needs.



How to place an order?

Product Consultation-> Business negotiation-> Provide plans-> follow-up matters-> arrange deposit-> production-> before delivery (if you need to check the goods, it can be notified us)-> Inspection-> payment settlement- > Packing and Delivery-> Preparations before the factory-> On-site Installation-> Service Feedback-> More cooperation and referral. Detailed content can be seen -trade processes.



Are you a factory?

We are a factory, located in Ruian, Zhejiang, China.



How much space does this machine take?

Different devices have different venue requirements. For details, please consult our sales service consultant.



How many personnel do I need to operate this machine?

SX-C1100-1R Model A4 Paper Cutting Machine Need Two Labor. One for Machine Operator, One for Finished Paper Ream Packaging.



What should I prepare before the equipment arrives at the factory?

We have a list and a spare parts procurement list to meet different needs of transaction customers.
